STORION-LC 836

Liquid Cooling Container

836 kWh

This outdoor battery cabinet adopts advanced liquid cooling technology and offers a system capacity of 836 kWh, delivering stable performance for large-scale energy applications. With its highly integrated design, it enables easy transportation and fast installation. The system is equipped with multi-level safety protection, including cell-, module-, and cabinet-level protection, along with an optimized exhaust structure and multi-layer fuse design to ensure reliable operation. In addition, C5 anti-corrosion protection and high-efficiency bidirectional active balancing enhance durability and battery performance, making the STORION-LC 836 an ideal solution for grid-side projects, industrial facilities, island grids, and mining sites.

FEATURES

System Specifications

Datasheet

Dimensions (W × D × H)

1450 × 2480 × 2435 mm

System Weight

7.5 t

Ingress Protection

IP55

Rated Voltage

1331.2 V (4 Modules per Cluster)

Nominal Capacity

835.99 kWh (8 Modules)

Rated Charging and Discharging Power

418 kW (0.5 P)

Corrosion Resistance

C4 (Standard); C5 (Optional)

Battery Chemistry

LFP (LiFePO₄)

Operating Temperature Range

-30 °C – 50 °C

Fire-Fighting System

Aerosol Fire Suppression, Water Sprinkler, Venting Panels & Ventilation Fans

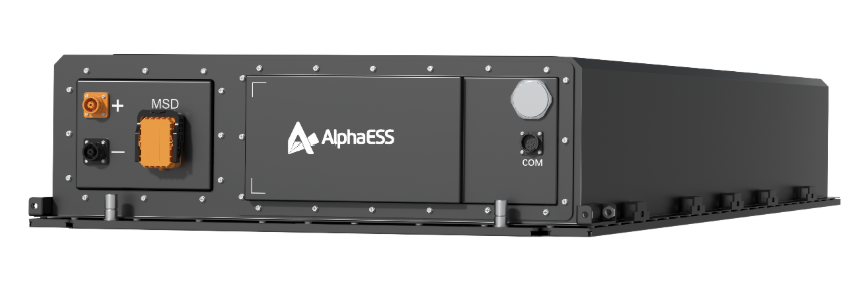

Battery Specifications

Battery Model

Rated Voltage

Nominal Capacity

Rated Charging and Discharging Power

Ingress Protection

Weight

Dimensions (W × D × H)
